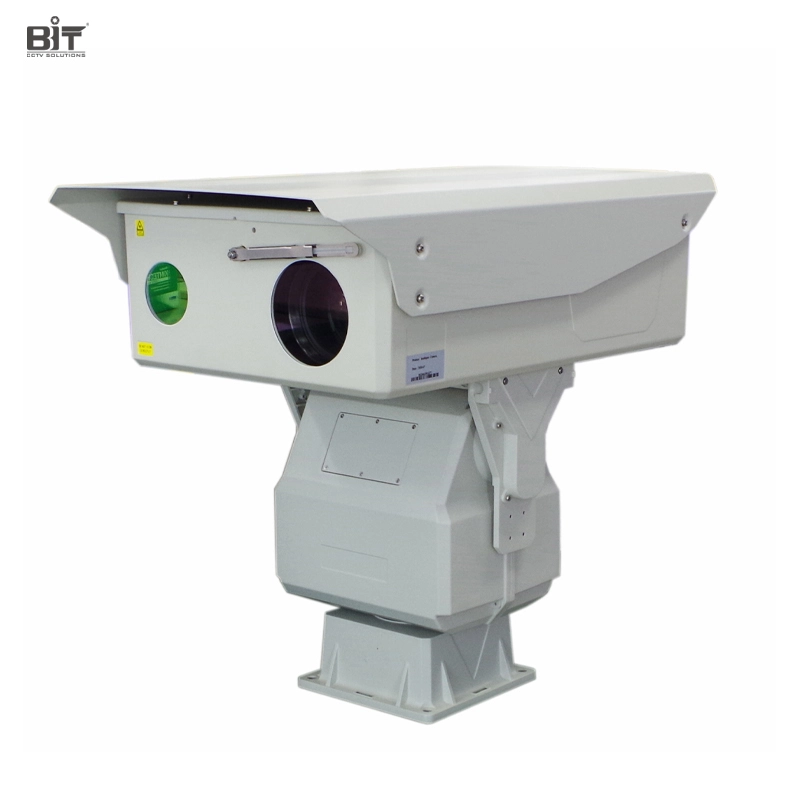

مسافة طويلة للرؤية الليلية ليزر كاميرا ويب

Detection Range

Day:3km/Night:1.5km

Consumption

12W, 808nm Military NIR

Laser Angle

0.7°～20°

Angle & Distance Matching Technology

1. DSS digital stepper illumination angle control, advanced laser angle and distance match technology, min 0.1° follow-up zoom

2. GHT-II super homogeneous HD illumination technology

3. 0.01°SLM optical axis aiming and lock

Camera

1/1.8'' CMOS

0.0002lux high sensitive color to B/W

2MP, 1920*1080, Automatic ICR switch

H.264/MPEG4/MIPEG video format, support dual video streams

Video Bitrate 32Kbps~16Mbps, 60Hz30 frame/S

Support SD card storage

Photo Cell Control

Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night

Lens

15-528mm

F3.0~360

FOV: (H)23°～0.74°

MOD:4M

HD infrared correction, the same focus at day and night

Motorized /manual zoom, DC 8~12V, auto IRIS,DC5V

Fog Penetration

AFR enhanced image processing technology (fog filter optional)

LPR (optional)

Avoid strong light for license plate recognition

Housing

1. Material: Die-cast aluminum alloy housing, sealed and waterproof

2. Structure: double window design

3. Surface treatment: PTA three-resistance coating, anti corrosion(optional)

4. Weather proof: IP66, waterproof, dustproof

5.Connector：Aviation Water-Proof Connector

PT

Pan: 360° continuous rotation，tilt: +40°～-45°

Rotation speed: Pan: 0.01°～30°/S, Tilt: 0.01°～15°/S

Positioning accuracy: 0.1°

Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

Support coordinate query/feedback and absolute control

Interface

1*RJ45，1*AC/DC 24V

Optional: Reserve RC422/485 and BNC, connect with radar, GIS or others

Military aviation water-proof connector

Protocol

1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and more

2. Support Onvif 2.4

2. P/T control protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional)

Power supply

AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option)

Working Environment

1. Working temperature: -40℃～+65℃

2. Storage temperature:-40℃～+65℃

3. Working Humidity:<90%

4. Anti-shake

5.Anti-shock

6.IP66 ingress protection

Weight

≤45kg
